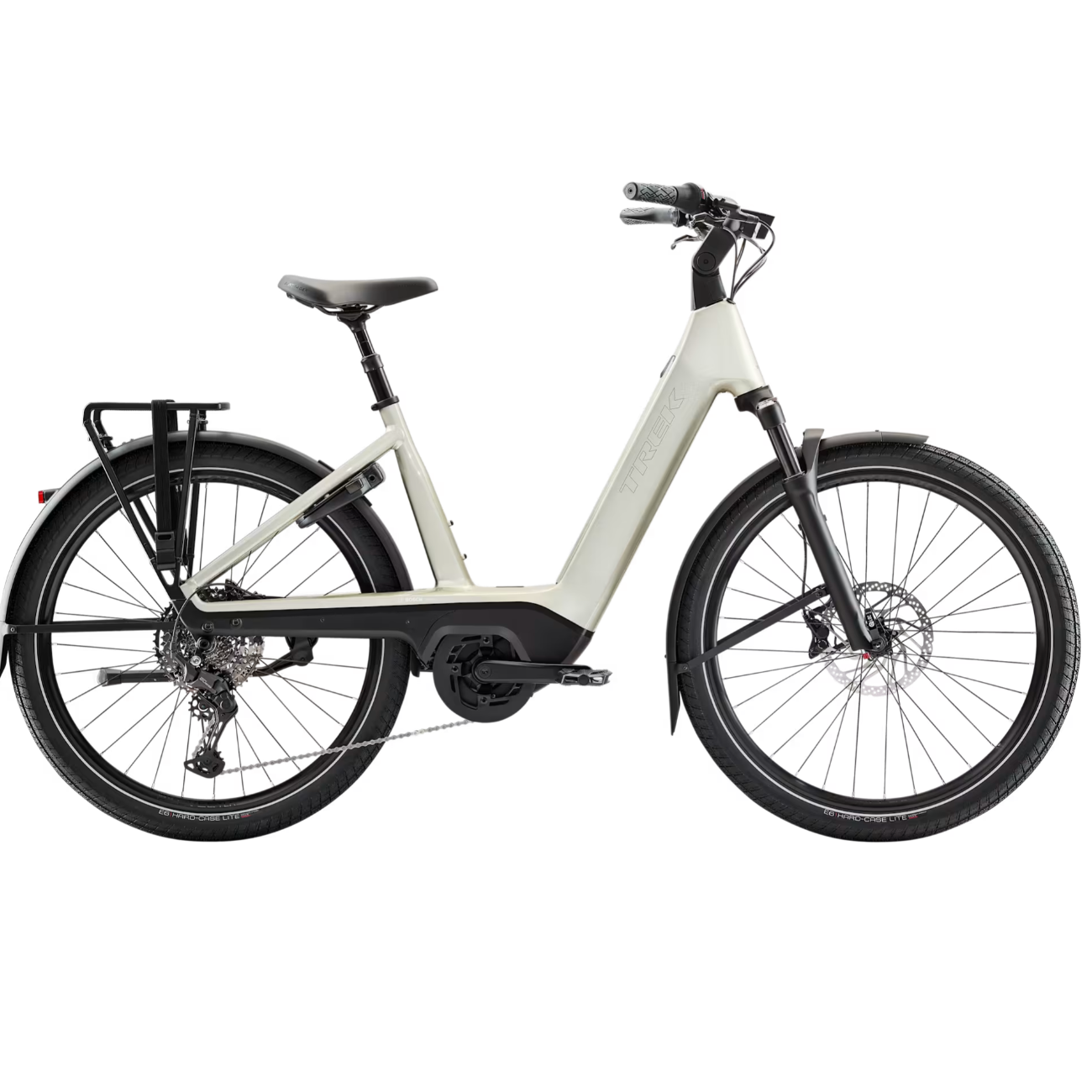

The Charter+ 5 540 Wh low-step is a versatile city e-bike ready to adapt to how and where you ride. Its adjustable cockpit lets you customise feel from upright and comfortable to a more active position, while an air-sprung 80 mm fork keeps the ride smooth. It comes ready to roll with a 10-speed Shimano CUES drivetrain for smooth shifting performance and a Bosch Performance Line PX motor with 540 Wh battery for plenty of power on commutes and joyrides.
| Specification | Detail |
|---|---|
| Frame | Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR |
| Rear Shock | N/A |
| Fork | SR Suntour Mobie 34, tapered steerer tube, air spring, adjustable rebound and compression, lockout, 100mm QR, 80mm travel |
| Headset | FSA |
| Stem | Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length |
| Handlebar | Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width |
| Grip | Trek ergonomic PRO, lock-on |
| Brake Rotors | Shimano RT30, CentreLock, 180 mm + 204 mm |
| Brake Lever | Shimano BR-MT420 |
| Front Brake | Shimano BR-MT420 hydraulic disc |
| Rear Brake | Shimano BR-MT420 hydraulic disc |
| Front Tyre | Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.4" |
| Rear Tyre | Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.4" |
| Wheel Size | 27.5" |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28/32-hole, 23 mm width, Presta valve |
| Spokes | Black stainless |
| Front Hub | Shimano TC500, centerlock, 110x15 mm thru axle |
| Rear Hub | Shimano TC500-HM |
| Speeds | 10 |
| Rear Derailleur | Shimano CUES U6000 GS |
| Shift Levers | Shimano CUES U6000 w/optical gear display, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Cassette | Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed |
| Chainset | FSA Bosch CK-220, 36T ring, 165 mm length / FSA, 36T, steel |
| Bottom Bracket | N/A |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Commuter Comp |
| Seat Post | |
| Motor | Bosch Smart System PX, 90 Nm, 250 W, 25 km/h max assist |
| Battery |
Bosch PowerTube 540 Wh |
| Display | Bosch Kiox 500, smart system |
| Controller | Bosch LED remote, smart system |
| Charger | Bosch standard 4A, 230V, smart system |
| Lights | |
| Kickstand |
Pletscher Comp Flex 40
|
